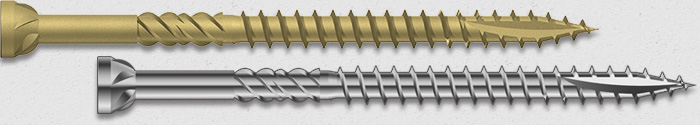

About the EPIC™ Trim Head Screw

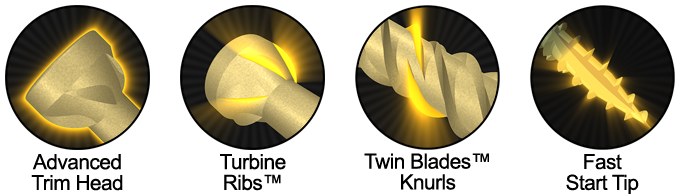

The EPIC™ Trim Head is designed to take wood screws to an entire new level. Our extra sharp Fast Start Tip saves you time onsite and our patented Twin Blade Knurls1 outperform any other. The Self-Tapping Thread cuts effectively through materials such as wood, plastic and sheet metal. The patented Turbine Ribs2 ensure an incredibly clean finish. Its cup shaped countersinking head provides unparalleled holding power and less risk of splitting. The small trim head provides a clean, professional connection.
(1) Patent # 11,359,661 B2 (2) Patent # 11,346,388 B2
Common Applications
- General indoor and outdoor jobs
- Trim work
- Interior and exterior framing
- Windows and doors
- Remodeling and repair
- Residential construction
- Cabinetry
- And Much more!
Technical Data and Downloads:
Available In:
ZYTEC™ XT
Tested and recognized for use in most ground contact pressure treated lumber for general exterior construction as described by the American Wood Protection Association (AWPA) U1 UC4A or below. For environments above UC4A, use proper grade of stainless steel. Always assess the environment before selecting the type of coated fastener. Some corrosive environments including exposure to water, airborne salt, chemicals and pressure treated lumber rated above AWPA UC4A may cause early failure.
Stainless Steel AISI 316
316 Stainless Steel is code compliant for use in marine environments with saltwater splash, airborne salts, and areas with de-icing salts.
Stainless Steel
Our stainless steel is either AISI 302, 304 or 305 and is code compliant for use with ground contact pressure treated lumber in wet environments such as near freshwater lakes and rivers, and for use in redwood and cedar.
EPIC Star Drive Trim Head Wood Screws
EPIC™ Exterior Trim Head Star Drive Wood Screws
#9 x 1-5/8" to #9 x 5"
Drive Bit Included!
| Size | Bit | 1lb Qty | 5lb Qty | Bulk Qty |
| 9 x 1-5/8" | TX20 | 148 | 739 | 4,000 |
| 9 x 1-5/8" White Head | TX20 | 148 | 739 | 4,000 |
| 9 x 2" | TX20 | 122 | 608 | 3,000 |
| 9 x 2" White Head | TX20 | 122 | 608 | 3,000 |
| 9 x 2-1/2" | TX20 | 98 | 489 | 2,500 |
| 9 x 2-1/2" White Head | TX20 | 98 | 489 | 2,500 |
| 9 x 3" | TX20 | 82 | 409 | 2,000 |
| 9 x 3" White Head | TX20 | 82 | 409 | 2,000 |
| 9 x 4" | TX20 | 61 | 306 | 1,500 |
| 9 x 5" | TX20 | 50 | 248 | 1,000 |
EPIC™ Stainless Steel Trim Head Star Drive Wood Screws
#9 x 1-5/8" to #9 x 4"
Drive Bit Included!
| Size | Bit | 1lb Qty | 5lb Qty | Bulk Qty |
| 9 x 1-5/8" | TX20 | 148 | 738 | 4000 |
| 9 x 2" | TX20 | 119 | 595 | 3000 |
| 9 x 2-1/2" | TX20 | 92 | 462 | 2500 |
| 9 x 3" | TX20 | 81 | 406 | 2000 |
| 9 x 4" | TX20 | 60 | 302 | 1500 |
EPIC™ 316 Stainless Steel Trim Head Star Drive Wood Screws
#9 x 1-5/8" to #9 x 4"
Drive Bit Included!
| Size | Bit | 1lb Qty | 5lb Qty | Bulk Qty |
| 9 x 2-1/2" | TX20 | 92 | 462 | 2500 |
| 9 x 3" | TX20 | 81 | 406 | 2000 |
